Microfocus/Nanofocus X-ray Inspection System for Electronics Industries

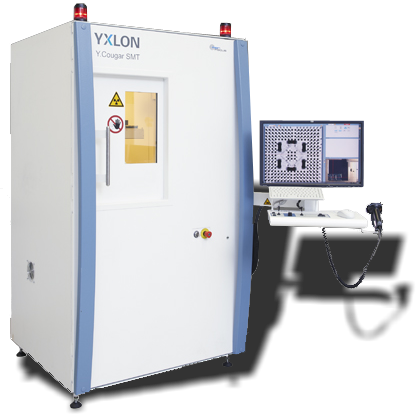

YXLON Cougar is a performance and efficiency oriented microfocus and nanofocus X-ray inspection system for the electronics industry. Get the highest resolution 2D and 3D imaging results.
- Simplified, enhanced, and reliable X-ray inspections
- Exceptional 2D/3D image quality in the shortest time
- User-friendly operation for high-tech inspections
- Minimal system space requirement
- Best-in-class DR technology
- Industrial quality computed tomography (CT) upgrade option
Funzionalità di sistema
Cougar is a microfocus and nanofocus X-ray inspection system designed to meet the widest variety of inspection requirements in the electronics and automotive industries, for military projects, in aircraft construction, telecommunications, and medical technology. The system was created to give you the very best image in the shortest time and is ideally suited for:
- Printed circuit boards
- Electronic and mechanical modules
- Electromechanical components and plugs
- Semiconductor packaging and interconnects
- Microsystems
- Sensors
- Actuators
- MEMS and MOEMS
The small-sized, affordable Cougar utilizes the combined power of several YXLON innovations - FeinFocus X-ray tube technology, High Power Target technology, and a finely calibrated, long-life flat-panel detector. The assortment of trays ensures that it can generate 2D and 3D images in extremely high resolution.
In addition to imaging excellence, you can look forward to simple, user-friendly controls and YXLON FGUI - FeinFocus Graphical User Interface - software, not to mention the myriad benefits of comprehensive automation. One-click solutions make manual inspections effortless, while Easy Teach-In makes it simple to program the automated procedures that guide the operator swiftly through inspections - and deliver repeatable and reliable results.
Cougar can be upgraded for CT with the optional microCT module. This enables CT for industrial quality assurance, with in-depth 3D examination of inspection items via virtual cross sections and layers. With its user-friendly YXLON QuickScan® module, it delivers 3D images and virtual slices within a minute.
Dati Tecnici | |
Attributo | Composizione |
Diametro Campione | 400 x 550 [mm] |
Dimensione Impianto | 1100 x 1100 x 2100 [mm] |
Massima Potenza del tubo | 64 [W] |
Tubo raggi-X | FXE 160 kV micro focus |
Tempo per Prima Immagine | ~10 [s] |
µCT Tempo Scansione | ~8 [s] |
Massima Amplificazione Geometrica | 2000 X |
Stabilizzazione Immagine | +/-70° [140°] |
.
