CABINE E IMPIANTI PER TOMOGRAFIA METROLOGICA 3D - CT COMPACT

Controlli Non Distruttivi (CND) > Tomografia ad Alta Potenza > > Schede Yxlon
.

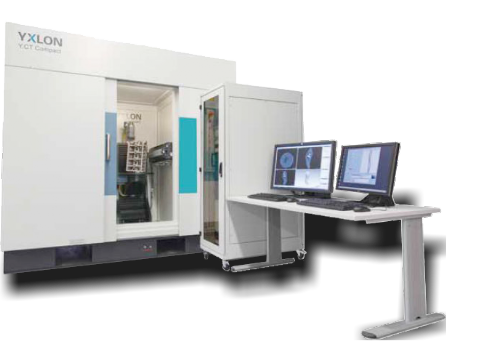

CT COMPACT
.


Compact Industrial CT System
for Medium/Large Parts Inspection

“Discover the difference in efficiency” – the YXLON CT Compact is a reliable, highly efficient fan-beam CT inspection system for acquiring high-resolution 3D images for your medium to large casting parts.


Industrial X-ray Tomography compact da 450kV



      • Solid workhorse for efficient entry into industrial CT
      • Programmable parameters make the system easy to use
      • Exceptional use of space with small footprint
      • Batch mode testing increases throughput
      • Available with LDA or flat-panel detector


Funzionalità di sistema

Do you need to inspect larger parts with high density? Are you looking for an efficient entry point into industrial CT? Experience the easy-to-use CT Compact, featuring time saving functions like batch mode and single-slice CT.

Automatic image enhancement via dedicated software algorithms, significantly contributes to the premium image quality of the CT Compact. The system is ideally suited for imaging components in automotive and aerospace foundries such as:

      • Heavy metal castings
      • Aluminum and steel components
      • Cylinder heads, engine blocks and transmission housings
      • Dense historical art and archeological objects
      • Large geological samples

In one test run you can create CT projections, each with different parameters, for different areas of the test parts. This way you speed up the testing process while maintaining image quality. Our multiple parts testing feature conveniently covers more than one item per test run.

YXLON has developed a linear detector array (LDA) that further guarantees scatter-free, homogenous image quality and provides unprecedented signal-to-noise ratio.

CT Compact generates high energy to effectively penetrate iron components up to 65 mm (2.6’’) thick and aluminum parts up to 250 mm (9.9’’).

Software features like automated center determination and imaging correction algorithms eliminate the need for time-consuming manual interaction.



Technical data
Attribute
Composition
Diameter Sample
600 x 750 [mm]
Max. weigh Sample
50 [Kg]
X-ray tube
Y.TU 450-D11
Time to First Image
<15  [sec] per slice
Voxel Size
sotto i 70 [micro]
Modality Inspection
Fan-Beam CT
Manipulator
2/3 Assi con amplificazione variabile in opzione
Type Detector
Y.LDA Line Detettore / Y.Panel 1620/1621





.
-
