BOOTH AND SYSTEMS FOR METROLOGICAL TOMOGRAPHY 3D - COUGAR EVO

Controlli Non Distruttivi (CND) > Tomografia ad Alta Potenza > > Schede Yxlon
.
COUGAR
.


Microfocus/Nanofocus X-ray Inspection System for Electronics Industries

YXLON Cougar is a performance and efficiency oriented microfocus and nanofocus X-ray inspection system for the electronics industry. Get the highest resolution 2D and 3D imaging results.


Industrial X-ray radioscopy system for electronic
    • Simplified, enhanced, and reliable X-ray inspections
    • Exceptional 2D/3D image quality in the shortest time
    • User-friendly operation for high-tech inspections
    • Minimal system space requirement
    • Best-in-class DR technology
    • Industrial quality computed tomography (CT) upgrade option



System Functionality

  • SMT and PTH assemblies
  • PCBs
  • IGBTs


Benefits for SMT
  • Accurate, fast, and repeatable inspection - manually and automatically
  • High power, high resolution inspection of very small features
  • Easy to use, dynamic image enhancing filters, e.g. eHDR


Software
  • eHDR-Inspect
  • Improved, user friendly FGU Multi Area Void Calculation
  • Extended BGA Inspection
  • Extended ADR

System Highlights

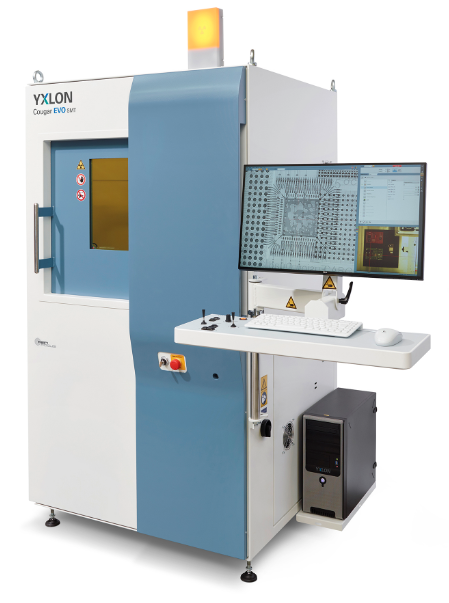

The small-sized, affordable Cougar EVO SMT utilizes the combined power of several YXLON innovations - FeinFocus X-ray tube technology, High Power Target technology, and a finely calibrated, long-life flat-panel detector. The assortment of trays ensures that it can generate 2D and 3D images in extremely high resolution.

In addition to imaging excellence, you can look forward to simple, user-friendly controls and YXLON FGUI - FeinFocus Graphical User Interface - software, not to mention the myriad benefits of comprehensive automation. One-click solutions make manual inspections effortless, while Easy Teach-In makes it simple to program the automated procedures that guide the operator swiftly through inspections - and deliver repeatable and reliable results.

Cougar EVO SMT can be upgraded for CT with the optional microCT module. This enables CT for industrial quality assurance, with in-depth 3D examination of inspection items via virtual cross sections and layers. With its user-friendly YXLON QuickScan® module, it delivers 3D images and virtual slices within a minute.

System Functionality
  • Wafer inspection
  • 3D integrated circuit joints
  • Microbumps
  • Sensors
  • MEMS and MOEMS
  • TSVs
Benefits for SMT
  • Accurate, repeatable void compilations, including multi area voiding
  • Excellent resolution at low power and low kV
  • Fast, automated, easy routines
  • Very fast live (on the fly) inspections
Software
  • eHDR-Inspect
  • User friendly FGUI
  • Multi Area Void Calculation
  • Extended BGA Inspection
  • Extended ADR
System Highlights

The small-sized, affordable Cougar EVO Semi utilizes the combined power of several YXLON innovations - FeinFocus X-ray tube technology, High Power Target technology, and a finely calibrated, long-life flat-panel detector. The assortment of trays ensures that it can generate 2D and 3D images in extremely high resolution.

In addition to imaging excellence, you can look forward to simple, user-friendly controls and YXLON FGUI - FeinFocus Graphical User Interface - software, not to mention the myriad benefits of comprehensive automation. One-click solutions make manual inspections effortless, while Easy Teach-In makes it simple to program the automated procedures that guide the operator swiftly through inspections - and deliver repeatable and reliable results.

Cougar EVO Semi can be upgraded for CT with the optional microCT module. This enables CT for industrial quality assurance, with in-depth 3D examination of inspection items via virtual cross sections and layers. With its user-friendly YXLON QuickScan® module, it delivers 3D images and virtual slices within a minute.
System Functionality
  • Batteries
  • Connectors
  • Various hard-to-see electronic components
  • Medical material
  • Military and space electronics
Benefits for SMT
  • Ultimate quality resolution for failure analysis applications
  • High-performance CT inspection for all demanding applications
  • Highest industry CT reconstructions with VGStudio and Siemens Software
Software
  • eHDR-Inspect
  • User friendly FGUI
  • CT reconstruction VGStudio and Siemens Software
System Highlights

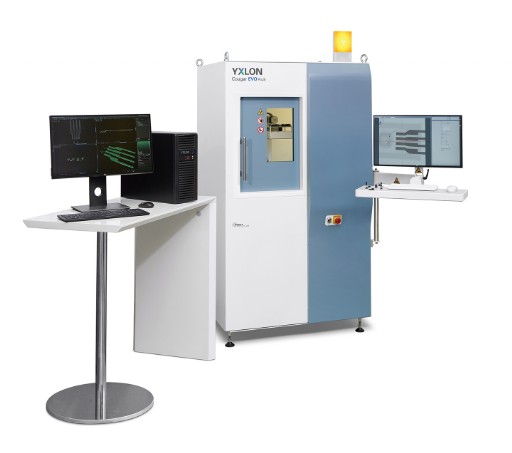

The small-sized, affordable Cougar EVO Plus utilizes the combined power of several YXLON innovations - FeinFocus X-ray tube technology, High Power Target technology, and a finely calibrated, long-life flat-panel detector. The assortment of trays ensures that it can generate 2D and 3D images in extremely high resolution.

In addition to imaging excellence, you can look forward to simple, user-friendly controls and YXLON FGUI - FeinFocus Graphical User Interface - software, not to mention the myriad benefits of comprehensive automation. One-click solutions make manual inspections effortless, while Easy Teach-In makes it simple to program the automated procedures that guide the operator swiftly through inspections - and deliver repeatable and reliable results.

Cougar EVO Plus comes standard with CT and an microCT module. This enables CT for industrial quality assurance, with in-depth 3D examination of inspection items via virtual cross sections and layers. With its user-friendly YXLON QuickScan® module, it delivers 3D images and virtual slices within a minute.

Technical data
Attribute
Composition
Diameter Champion
400 x 550 [mm]
plant Size
1100 x 1100 x 2100 [mm]
Maximum tube power
64 [W]
X-ray tube
FXE 160 kV micro focus
Time to First Image
~10 [s]
µCT Time Scan
~8 [s]
Maximum amplification Geometric
2000 X
Image Stabilization
+/-70°  [140°]





.
-
